2KW Underwater Thruster 75V High Voltage 100A High Current Waterproof ESC And Remote Control Surfboard Kit


2KW Underwater Thruster 75V High Voltage 100A High Current Waterproof ESC And Remote Control Surfboard Kit

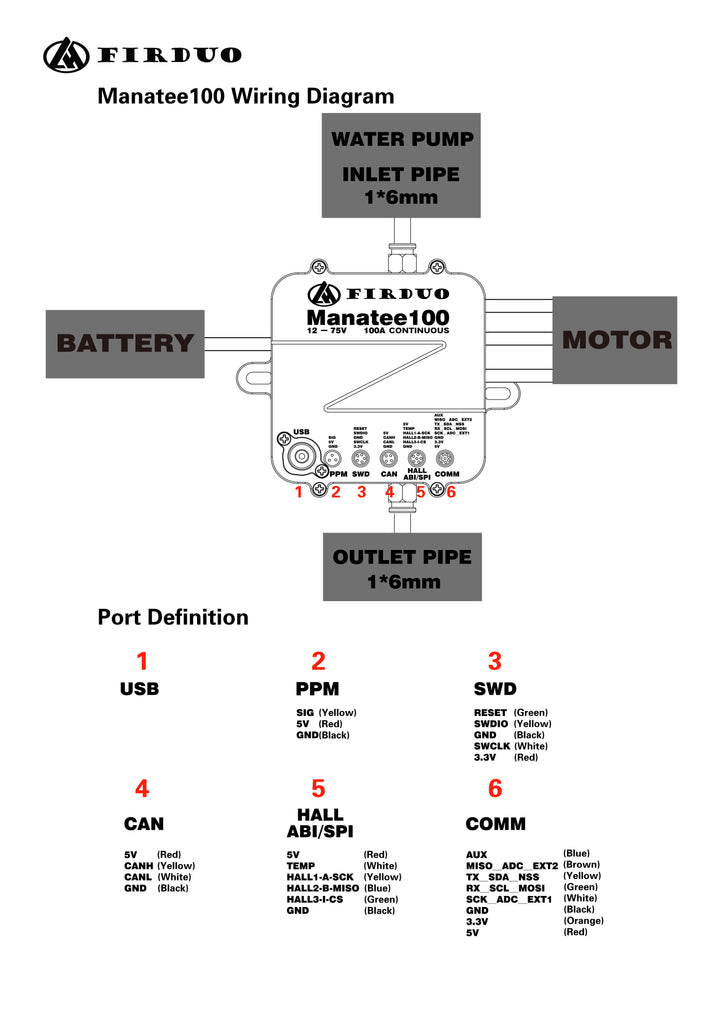

Manatee100  75V 100A VESC

Voltage: 75V maximum (recommended within 16S)

Current: 100A continuous, maximum 200A

Features:

 1、Based on the design of vesc75300 hardware principle.

 2、Using 6 mosfet  IRF7769L (100v 200A each).

 3、Independent gate drive.

 4、Independent power supply.

 5、Independent current sampling.

 6、Active filter circuit makes current sampling more accurate.

 7、Rich onboard interface.

 8、Independent two-way adc.

 9、Support VESC TOOL official 75300 firmware.

 10、The circuit is reasonable and stable.

2KW 140A Jet Propeller Paddle 65111 Electric Surfboard Motor

Specification:

Model type: 65111

Motor dimension: 65*111mm

Shaft:10mm

Motor stator slot: 12

Motor pole: 12

Motor KV:150

Motor Wire: 12AWG wire

Maximum voltage: 14S

Maximum current 140A

No-load current: 1.7A 142KV

Maximum power: 2kw and 1.5kw continuous

Resistance:115.8/114.9/114.7mΩ

Waterproof level:IP68

Weight:1.41kg

Remote Control

Specification:

Frequency: 2.4G

Voltage: 3.7V

Battery: lithium battery( inside)

Battery capacity: 400 mAh

Type of control: PWM

Output frequency: 1-2 millisecond

Throttle: 0-100%

Reset: zeroing automatically

Waterproof rate: PI67

Charging type: inductive charging

Inductive charger: ✔

charging cable: ✔

Power cable: USB

Charging voltage: 5V

Charging current: 500MA

Charging time: 2 H

Over charging protection: ✔

Effective range: 10M



Receiver:

operating voltage:5V

ESC power supply: ✔

External power interface: ✔

Frequency binding button: ✔

Out of control protection: ✔

Waterproof: no

Available channels:1

Frequency: 2.4G
