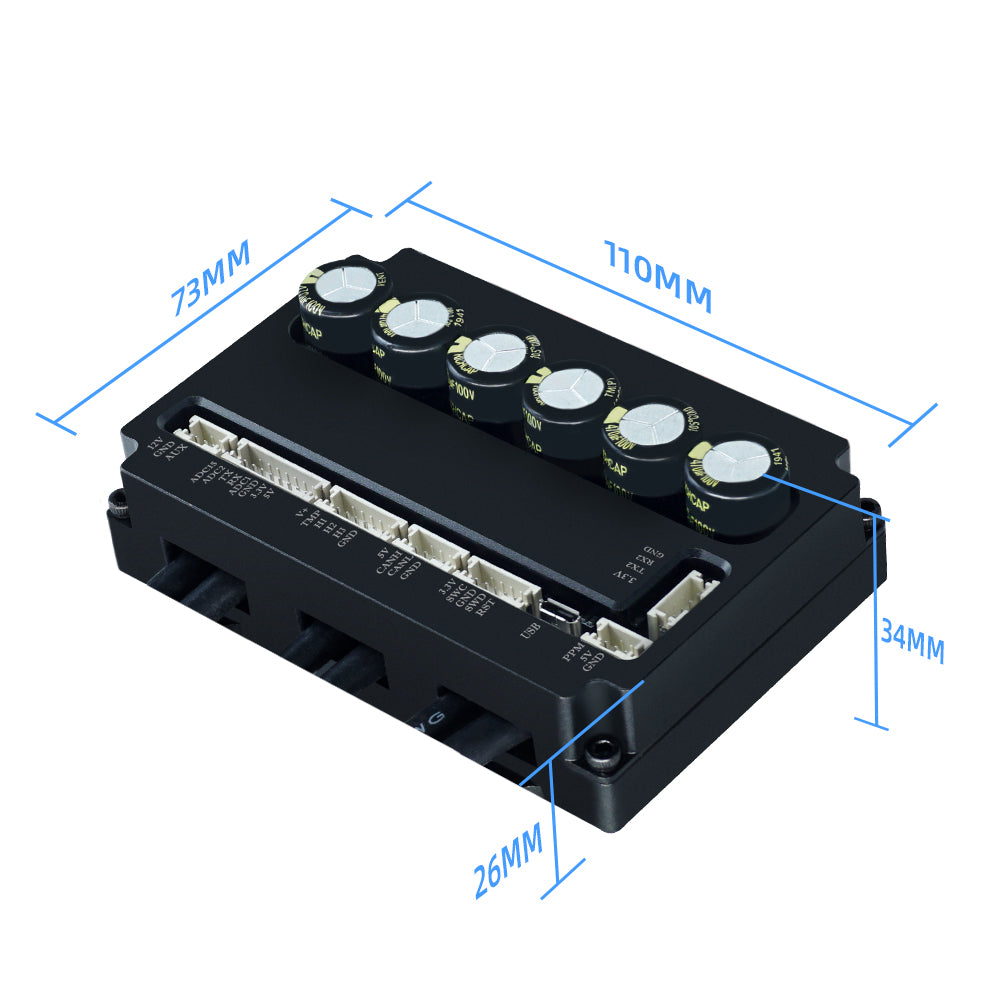

HGLTECH 75V 200A ESC Base On Vesc With Aluminum Case For Efoil


  • Voltage:14-75V( safe for 3-16S)
  • Continuous Current : 200A
  • Max Current :300A
  • Supported sensors: ABI, HALL, AS5047,AS5048A
  • EPRM:150000


  • Regenerative braking
  • Sensored or sensorless operation + hybrid mode
  • Configurable RPM-, current-, voltage- and power limits
  • Input source: PPM, Analog, NRF Nyko Kama Nunchuck
  • Communication ports: USB, CAN, UART
  • Throttle curve and ramping for all input sources
  • Seamless 4-quadrant operation
  • Motor revolution, amp hour, watt hour counting
  • Real time data analysis and read out via communication ports
  • Adjustable protection against:
  • Low input voltage
  • High input voltage
  • High motor current
  • High input current
  • High regenerative braking current (separate limits for the motor and the input)
  • High RPM (separate limits for each direction)
  • Digital VCC and analog VCC are produced by different voltage regulators respectively to make the system AD conversion more accurate
  • Motor wire: 8AWG
  • Power cable: 10AWG
  • Wiring Diagram With Aluminum Case:
