Bluetooth Module 2.4G Wireless Compatible With The Vesc Software

$26.00 $39.90

ESC

For V4

For V6

Qty

Based upon the nrf51_vesc project

Kindly Reminder: This bluetooth module can only support Android mobile device.

Used to communicating between the VESC and VESC Tool (mobile) over BLE. Note that the UART port on the VESC must be enabled with a baud rate of 115200 for this to work. The UART port on VESC can work only under 115200 baud

Operating voltage: 2.0V ~ 12V Onboard Chip: NRF51822
Actual use distance: The distance to communicate with VESC is about 15 meters
Frequency range: 2.4GHz
2.4 GHz multiprotololl RF receiver
ARM Cortex-M0 32 bit processor
256kB flash & 16kB RAM

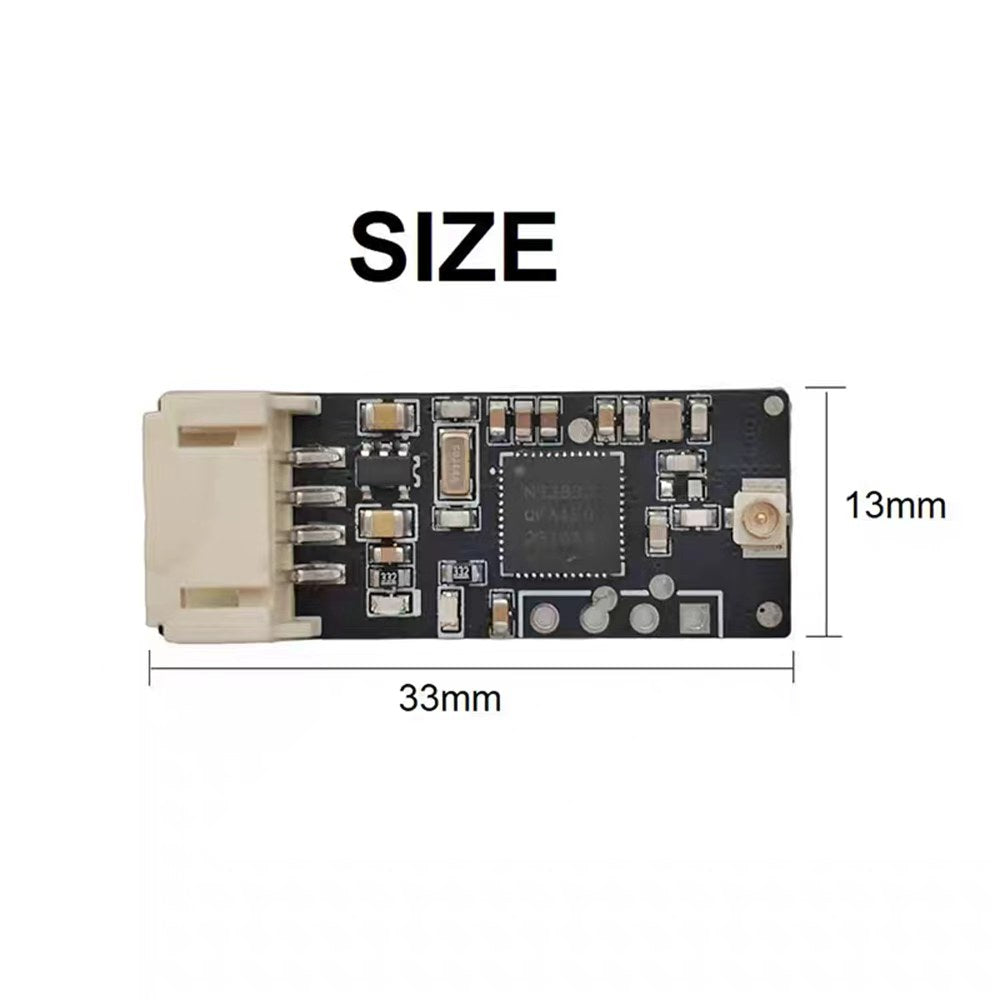

PCB size：27mm*13mm

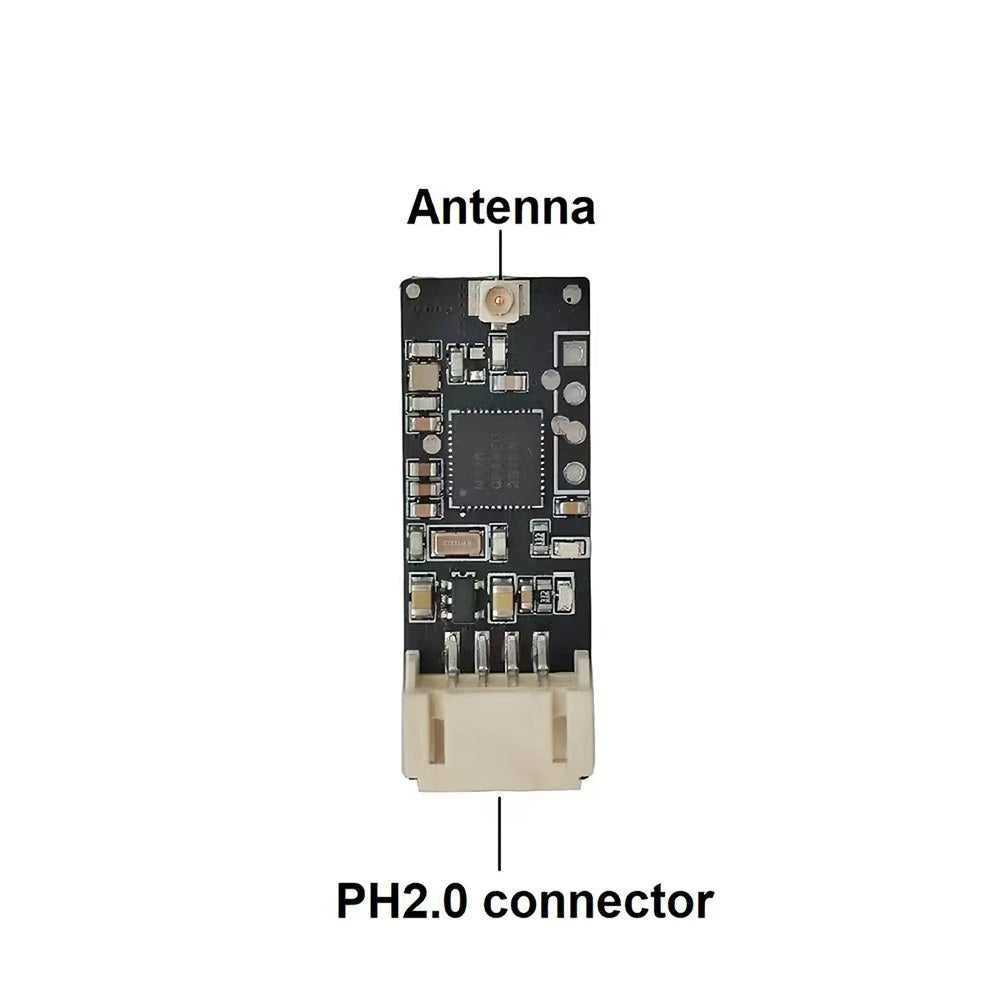

2.0mm seven-pin four-wire connector length：90mm
Antenna length：145mm
net weight：3.5g

APP download link：https://www.vesc-project.com/node/17 or

https://www.vesc-project.com/vesc_tool for Android system

Bluetooth 2.4G Wireless Module

Bluetooth VESC Bluetooth

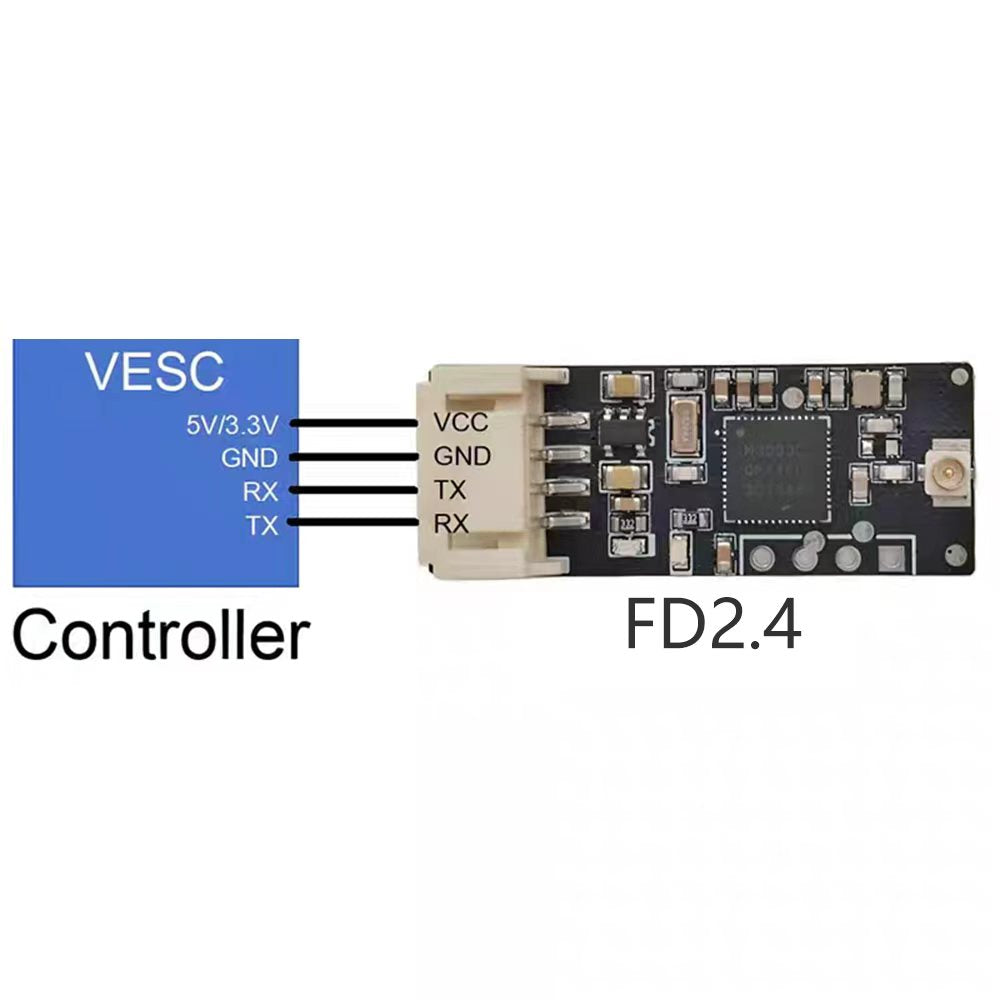

Wiring diagram download：

Bluetoo_module_connected_to_FSESC_6.6.pdf

Bluetoo_module_connected_to_DUAL_FSESC6.6.pdf

Bluetoo_module_connected_to_FSESC_4.12.pdf

Bluetoo_module_connected_to_DUAL_FSESC_4.20.pdf
