Firduo Manatee 100 PRO 75V 100A VESC ESC Waterproof Case For Electric Surfboard & Electric Skateboard

⚡ Precision Motor Control. Built for the Water.

The Firduo Manatee 100 PRO is a high-performance, waterproof VESC-based ESC engineered for demanding electric propulsion applications — from eFoil and electric surfboards to electric skateboards, scooters, and eBikes. With 100A continuous / 150A peak current, a wide 4S–20S (14–84V) voltage range, and a compact waterproof enclosure rated to 5 meters depth, it delivers professional-grade control in a package that fits anywhere.

📄  Download Manatee 100 Pro User Manual (PDF)
🔧 Firmware Download / Update via VESC Tool

⚡ Key Features

• ✅ STM32F4 MCU @ 168MHz — fast, precise motor control with real-time data logging
• ✅ FOC Sine Wave & BLDC Square Wave — smooth, silent operation in both modes
• ✅ Sensored & Sensorless — auto-detects all motor parameters; robust startup torque in both modes
• ✅ 100A Continuous / 150A Peak — handles high-demand applications without throttling
• ✅ 4S–20S (14–84V) — widest voltage range in its class
• ✅ Waterproof to 5m depth — sealed enclosure for full water immersion (wire end excluded)
• ✅ Built-in Bluetooth — wireless monitoring and configuration
• ✅ Regenerative Braking — recovers energy on deceleration
• ✅ 4 Control Modes — Duty-cycle, Speed, Current, Position

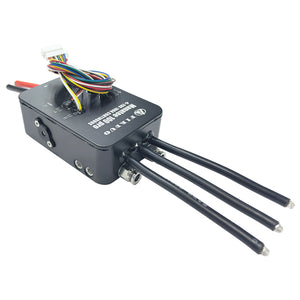

• ✅ Compact Form Factor — 109 × 75 × 38.6mm, fits in tight builds

📋 Full Specifications

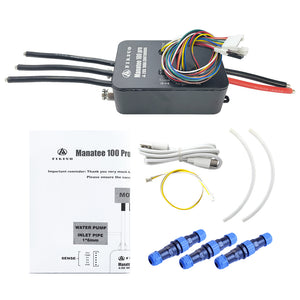

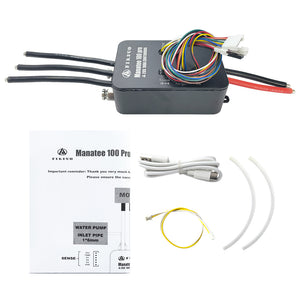

📦 What's in the Box

• 1× Manatee 100 Pro VESC ESC
• 1× USB Type-C Cable
• 1× PH2.0 2-Pin CAN Adapter Cable
• 2× Water Pipe (OD 6mm × 18cm)
• 1× Wiring Diagram
• Optional (bundle variant): 3× 120A Waterproof Connectors

🔗 Compatible Builds & Recommended Pairings

• eFoil / Electric Surfboard — pair with TUNA Underwater Thruster + VX3 Remote
• Electric Skateboard / Longboard — PPM/UART input compatible with most remotes
• eBike / Electric Scooter — supports hub motors and mid-drive motors via FOC
• ROV / AUV / USV — CAN/UART interface for flight controller integration (ArduSub, Pixhawk)
• Battery: 4S–20S LiPo or Li-ion (recommend ≥50A continuous discharge rating)
• Connectors: XT90 or AS150 anti-spark recommended for battery connection
• Complete Kit: Firduo 2KW Efoil Kit (ESC + Thruster + Remote)

🛠️ Setup Guide (Quick Start)

1. Choose your variant — "M 100 PRO" (ESC only) or "M 100 PRO + Waterproof Connectors ×3" if you need sealed phase connections for underwater use.
2. Connect motor phase wires — plug the 3-phase wires (A-B-C) from your motor into the ESC. Direction can be reversed in VESC Tool if the motor spins the wrong way.
3. Connect battery — use an XT90 or AS150 anti-spark connector. Verify voltage is within 14–84V before powering on.
4. Connect input signal — plug your remote receiver into the PPM/UART port, or connect via CAN for multi-ESC setups.
5. Run Motor Detection in VESC Tool — connect via USB-C, open VESC Tool (free), run the motor setup wizard. Bluetooth connectivity is also supported.This auto-detects all motor parameters for optimal FOC performance.
6. Configure protections — set voltage limits, current limits, and temperature thresholds to match your battery and motor specs.
7. Test at low throttle — verify motor direction and throttle response before full-power runs. Check all connections are secure and dry.

❓ FAQ

Q1: Does it support official firmware??
The Manatee 100 Pro is based on the open-source VESC platform and Running custom firmware. It is compatible with VESC Tool for configuration and real-time monitoring. It uses the STM32F4 MCU and supports the full VESC feature set including FOC, CAN bus, and all sensor types.

Q2: What motors is it compatible with?
It supports brushless (BLDC), brushed DC, and IPM motors. Sensor support includes sensorless, HALL, ABI encoder, AS5047, and AS5048A. Motor temperature sensors (NTC 10K/100K, PTC 1K, KTY83/122) are also supported. In short: if it's a common electric motor type, this ESC can drive it.

Q3: Is the waterproofing sufficient for eFoil / underwater use?
The ESC body is sealed to 5 meters depth. The wire exit point is not fully sealed — for underwater installations, wrap the cable exit with self-amalgamating tape or use the optional 120A waterproof connectors (available in the bundle variant) to seal the phase connections. The ESC is designed for eFoil and water sports use.

Q4: Can I run two ESCs in a dual-motor setup?
Yes. The CAN bus interface allows multiple Manatee 100 Pro units to be daisy-chained for synchronized dual-motor control. This is commonly used in dual-drive electric skateboards and twin-thruster watercraft. Configure master/slave roles in VESC Tool.

Q5: Do I need the waterproof connector bundle, or can I use my own connectors?
The base "M 100 PRO" variant ships without phase connectors — you can solder your own (XT60, MR60, or bare wire). The "M 100 PRO + Waterproof Connectors ×3" bundle includes 3× Firduo 120A waterproof connectors, which are recommended for any wet or submerged installation to prevent corrosion and short circuits.
