Firduo 65111 Motor DIY Kit – Sea Lion 120A ESC + VX3 Remote for eFoil & Electric Surfboard

🌊 Complete Drive System. Ready to Build.

The Firduo 65111 Motor DIY Kit is a complete, pre-matched propulsion bundle combining the 65111 150KV IP68 Waterproof Motor with Propeller, Sea Lion 120A Water-Cooled ESC, and VX3 IP67 Waterproof Remote Controller — everything you need to power an eFoil, electric surfboard, hydrofoil, or ROV build.

All three components are matched for compatibility: the 65111 motor operates within the Sea Lion ESC's 5S–12S input range, the VX3 remote connects via PPM for reliable throttle control, and the IP68 motor pairs with the water-cooled ESC for sustained high-current operation. Skip the compatibility research — just add your battery, mount, and board.

⚡ Key Features

• ✅ Complete Matched System — motor, ESC, and remote pre-matched for voltage, current, and signal compatibility
• ✅ 65111 150KV IP68 Motor + Propeller — 2KW peak / 1.5KW continuous, 10mm shaft, fully waterproof
• ✅ Sea Lion 120A Water-Cooled ESC — 120A continuous / 240A burst, 5S–12S LiPo, active water cooling
• ✅ VX3 IP67 Waterproof Remote — 1.6-inch display, GPS, MOS temperature, cruise control, PPM + UART,wireless charging
• ✅ Suitable for eFoil, Hydrofoil, Electric Surfboard, ROV, Robot — versatile across water sport and marine applications
• ✅ Multiple ESC Protection Systems — stall, low voltage, over-heat, signal loss protection
• ✅ LCD Program Card & USB/PC Programming — easy ESC parameter tuning and firmware updates


📋 Full Specifications

65111 — 150KV IP68 Waterproof Brushless Motor

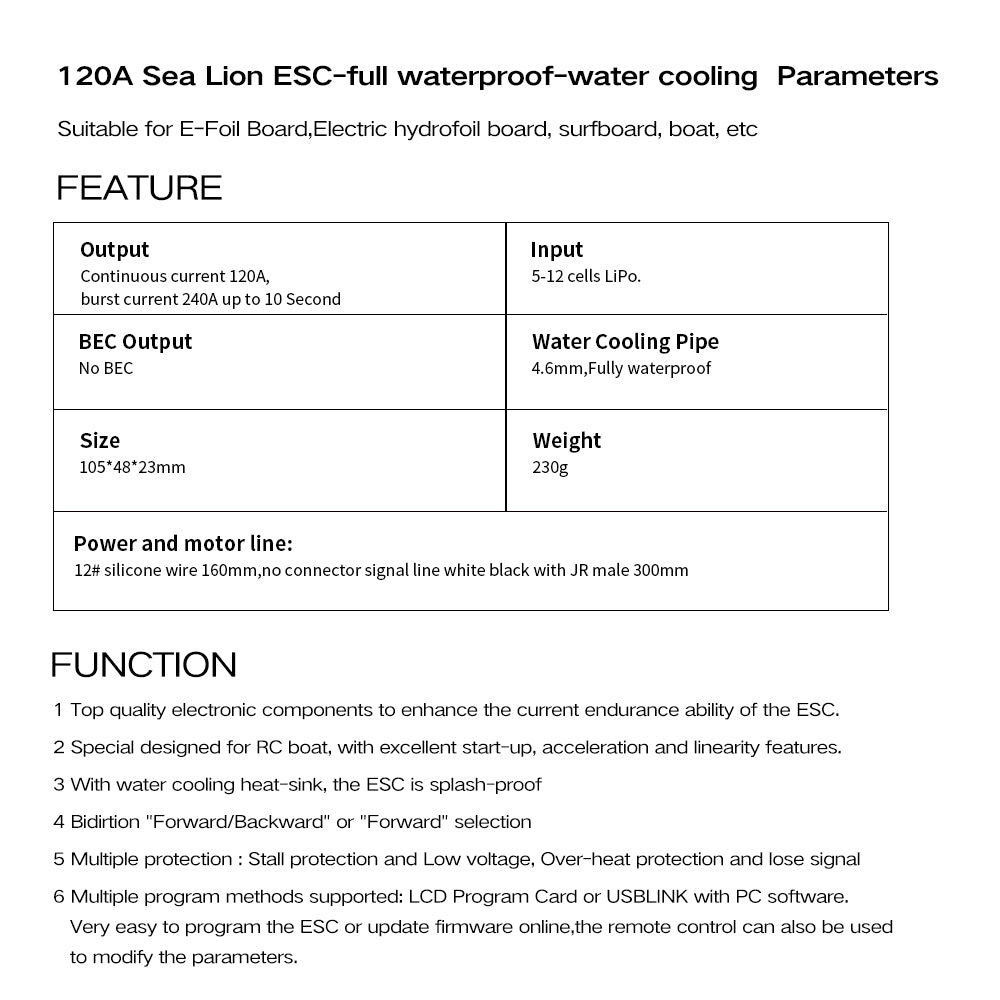

Sea Lion — 120A Water-Cooled ESC

VX3 — IP67 Waterproof Remote Controller

📦 What's in the Box

• 1× Firduo 65111 150KV IP68 Waterproof Brushless Motor + Matched Propeller (with installation accessories)
• 1× Firduo Sea Lion 120A Water-Cooled ESC
• 1× Firduo VX3 IP67 Waterproof Remote Controller (with receiver)

⚠️ Sea Lion ESC has no BEC — receiver must be powered separately.ESC's waterproof rating is waterproof-Splash protection; it cannot be used underwater.

🔗 Compatible Builds & Recommended Pairings

• eFoil / Hydrofoil — 65111 at 10S–12S for compact, lightweight foil builds
• Electric Surfboard / Jetboard — complete 2KW drive system for DIY electric surfboard builds
• ROV / AUV / Robot — IP68 motor + waterproof ESC for underwater and marine robotics
• Upgrade to VESC System: Firduo 2KW eFoil Kit – Manatee 100 ESC + 65111 Motor + VX3 Remote — same motor and remote with VESC-based ESC for full telemetry and UART support
• ESC Upgrade (VESC): Firduo Manatee 100 75V 100A Water-Cooled VESC — drop-in ESC upgrade with VESC Tool configurability and UART telemetry;Higher waterproof rating, supports underwater use
• Motor Only: Firduo 65111 150KV IP68 Waterproof Motor — purchase motor separately if you have an existing ESC and remote
• Recommended Connector: Firduo 120A Waterproof Power Connector — for sealed battery-to-ESC connection
• Battery: 5S–12S LiPo or Li-ion pack (Sea Lion ESC limit), minimum continuous current to meet the rated power requirements of the motor.

🛠️ Setup Guide

1. Plan your build — confirm your battery voltage (10S–12S recommended for this kit), motor mount type, and board configuration. The Sea Lion ESC is limited to 12S max — do not exceed 44.4V input. The 65111 has a 10mm shaft — verify your propeller hub matches.
2. Mount the motor — secure the 65111 motor into your foil mast pod or motor mount using the standard M5 screws. Route the 12AWG motor wires through the mast or board channel, away from the propeller arc and any moving parts. Attach the matched propeller to the 10mm shaft.
3. Connect motor to ESC — connect the 3 motor phase wires to the Sea Lion ESC phase outputs (A-B-C). Rotation direction can be corrected by swapping any two phase wires — no motor rewiring required. Test rotation direction at low throttle before installing the propeller.
4. Connect water cooling — attach the Sea Lion ESC's 4.6mm water cooling inlet and outlet to your board's water circuit. Ensure water flows through the ESC before running at high current. Secure hose connections with clamps to prevent leaks.
5. Connect battery — use a high-current connector rated for 120A+ (Firduo 120A waterproof connector recommended). Use an anti-spark switch or pre-charge resistor to prevent connector arcing. Verify battery voltage is within 5S–12S (18.5V–44.4V).
6. Connect VX3 receiver to ESC — connect the VX3 receiver signal wire (JR male) to the Sea Lion ESC's PPM signal input. Power the receiver separately from a 5V BEC — the Sea Lion has no BEC output. Pair the VX3 remote with the receiver before first use.
7. Program the ESC — use an LCD Program Card (sold separately) or USB + PC software to calibrate throttle endpoints, set drive direction, and configure low voltage cutoff. Calibrate throttle range with the VX3 remote before first water test.
8. Water test at low power — start at 20–30% throttle in calm water. Verify smooth motor operation, check water cooling flow (ESC should remain cool), and confirm all connections are sealed before increasing to full power.

❓ FAQ

Q1: What battery do I need, and what voltage range is supported?
The Sea Lion 120A ESC supports 5S–12S LiPo (18.5V–44.4V). The 65111 motor supports up to 14S, but the ESC is the limiting factor — do not exceed 12S (44.4V) with this kit. A 10S–12S LiPo or Li-ion pack with minimum 50A continuous discharge is recommended. The battery is not included — ensure your pack has a BMS capable of sustaining the discharge rate and a high-current connector rated for 120A+.

Q2: The Sea Lion ESC has no BEC. How do I power the VX3 receiver?
The Sea Lion 120A has no BEC output. You must power the VX3 receiver separately using a standalone 5V BEC connected to your battery, or a small receiver battery pack. Connect the BEC output to the receiver's power input, and connect the ESC signal wire (JR male) to the receiver's throttle channel. Do not attempt to draw receiver power from the ESC signal wire.

Q3: Can I upgrade the Sea Lion ESC to a VESC-based system later?
Yes. The 65111 motor and VX3 remote are both compatible with VESC-based ESCs. The Firduo Manatee 100 VESC is a direct upgrade — it supports UART mode for full VX3 telemetry (motor power, MOS temperature, GPS on the VX3 display) and VESC Tool configurability. Alternatively, the Firduo 2KW eFoil Kit includes the Manatee 100 ESC pre-matched with the 65111 motor and VX3 remote.

Q4: Is the motor water-cooled? What about the ESC?
The 65111 motor is IP68 waterproof and relies on natural water flow for passive cooling during operation — no separate cooling circuit is required for the motor. The Sea Lion 120A ESC uses active water cooling via a 4.6mm cooling pipe — connect the ESC cooling inlet and outlet to your board's water circuit before high-current operation. Always ensure water cooling is active before full-power riding.

Q5: What is the difference between this kit and the 2KW eFoil Kit (Manatee 100 + 65111 + VX3)?
Both kits include the 65111 motor and VX3 remote, but differ in the ESC. This kit uses the Sea Lion 120A — a traditional RC ESC with PPM control, 5S–12S input, and LCD/USB programming. The 2KW eFoil Kit  uses the Manatee 100 VESC ESC — open-source VESC platform with UART telemetry, 75V (16S) support, and full VESC Tool configurability. Choose this kit for a simpler, lower-cost build at 10S–12S; choose the 2KW eFoil Kit for higher voltage, VESC features, and full VX3 telemetry.
