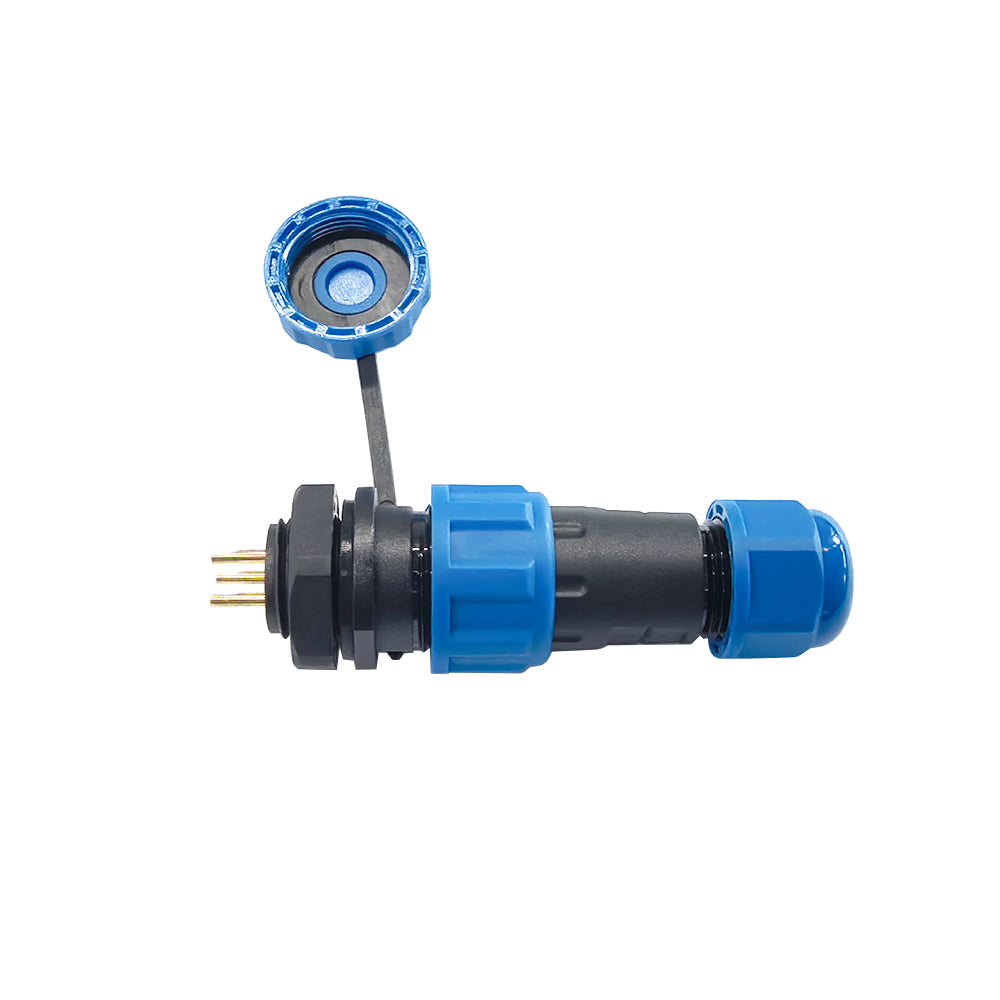

Firduo 5A IP68 Waterproof Signal Connector 3-Core / 4-Core for eFoil, ROV & Marine Wiring

🔌 Multi-Core. Fully Sealed. Signal-Ready.

The Firduo FD05-5A IP68 Waterproof Connector is a precision multi-core circular connector designed for reliable, moisture-proof signal and low-power connections in wet and outdoor environments. Available in 5A 3-core and 5A 4-core configurations with a rear-nut panel-mount socket, it features a threaded locking mechanism, gold-plated T2J copper contacts, and a full IP68 waterproof rating. Purpose-built for eFoil sensor wiring, ROV/AUV signal cables, BMS communication, and any marine or outdoor multi-wire application requiring a secure, re-mateable waterproof connection.

⚡ Key Features

• ✅ IP68 Waterproof Rating — fully sealed for continuous underwater submersion
• ✅ Two Configurations: 5A 3-core (3-wire signal) and 5A 4-core (4-wire signal/power)
• ✅ Rear-Nut Panel-Mount Socket — secure enclosure wall installation without tools
• ✅ Gold-Plated T2J Copper Contacts — high conductivity, oxidation-resistant, corrosion-resistant
• ✅ Threaded Locking Mechanism — clockwise to secure, counter-clockwise to release; vibration-proof
• ✅ Anti-Misfit Circular Design — keyed to prevent incorrect mating
• ✅ Finger Protection — recessed contacts prevent accidental touch on live pins
• ✅ 500-Cycle Rated — durable for repeated connect/disconnect over the product lifetime
• ✅ Wide Temperature Range: -10–80°C — suitable for cold water and high-heat environments
• ✅ Rated 380V DC/AC — safe for multi-wire signal and low-power applications

📋 Full Specifications

📦 What's in the Box

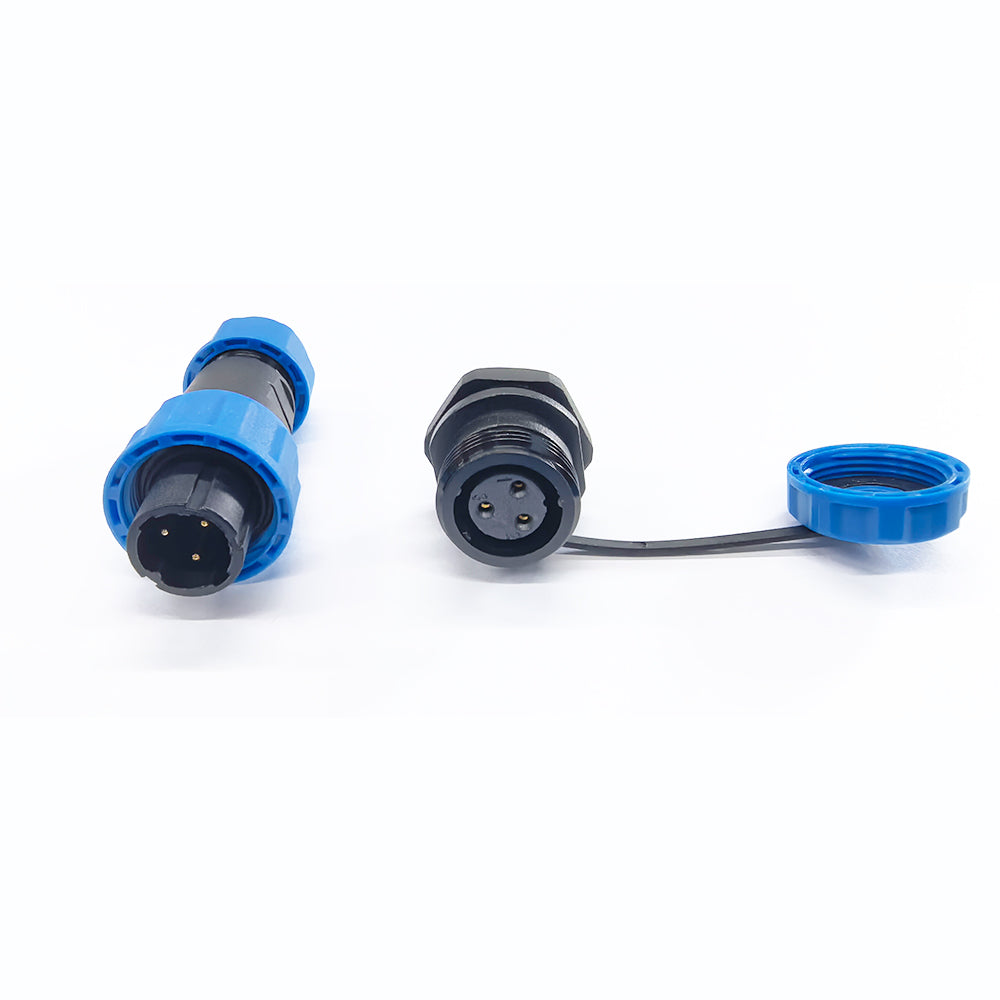

• 5A-3Core: 1× Connector set (plug + rear-nut socket)
• 5A-4Core: 1× Connector set (plug + rear-nut socket)

Each set includes one plug (male) and one rear-nut socket (female).

🔗 Compatible Builds & Recommended Pairings

• eFoil / Electric Surfboard — 3-core for PPM remote receiver signal (GND + VCC + signal);Hall sensor: GND + VCC + output); 4-core for UART remote receiver signal+motor temperature sensor + hall sensor wiring
• ROV / AUV / Underwater Robot — IP68 for continuous submersion; ideal for multi-wire thruster control and sensor signal penetrations
• BMS / Battery Management — 3-core or 4-core for CAN bus, UART, or balance wire connections through waterproof enclosures
• eBike / Electric Scooter — brake sensor (3-core), throttle + brake combined (4-core) waterproof connections
• Marine / Boat Wiring — navigation sensor feeds, bilge pump controls, multi-wire signal penetrations
• Pair with: Firduo FD05 10A/24A Waterproof Connector — for higher-current single or dual-wire connections in the same build
• Pair with: Firduo 120A High-Current Waterproof Connector— for motor phase power connections
• Pair with: Firduo IP68 Cable Gland Connector — for cable penetration sealing through enclosure walls

🛠️ Setup Guide (Quick Start)

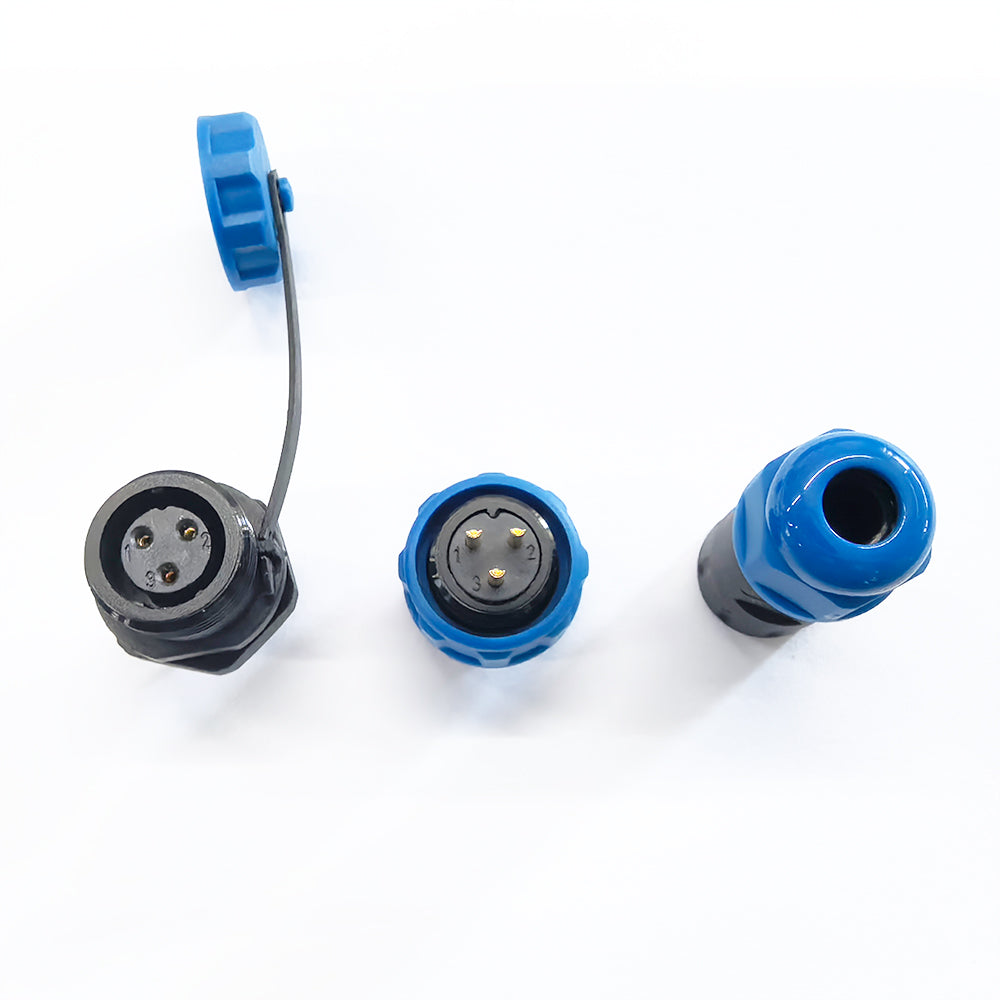

1. Select the correct variant — Use 5A-3Core for 3-wire signal connections (e.g. PPM receiver: GND + VCC + signal; hall sensor: GND + VCC + output). Use 5A-4Core for 4-wire connections (e.g. motor temperature + hall sensor combined; CAN bus: GND + VCC + CAN-H + CAN-L). Both are rated 5A per pin — do not exceed 5A per conductor.
2. Prepare your cables — Strip 3–4mm of insulation from each wire end. Ensure cable outer diameter is within 4–6.5mm. Multi-core cables with individual conductors must fit within this OD range for the rubber seal to compress correctly.

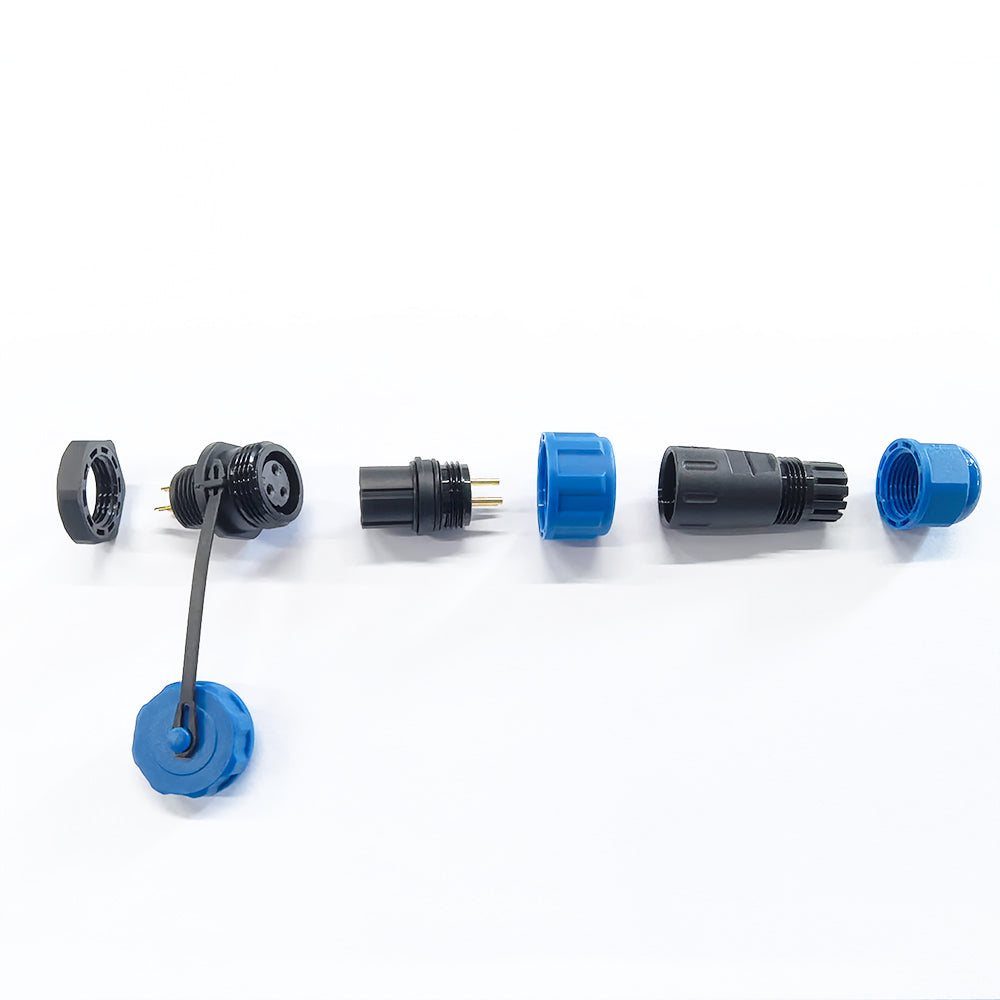

3. Thread cable through connector body first — Before soldering, slide the rubber seal gland and connector body over the cable. This step cannot be done after soldering — do not skip it.
4. Solder wires to contacts — Tin each wire end and contact pin. Flow solder briefly into each contact cup. With 3 or 4 pins in close proximity, use minimal solder to avoid bridging adjacent contacts. Allow to cool fully before assembly.
5. Seat the contact assembly — Push the soldered contact assembly into the connector body. Verify each pin is fully seated before tightening.

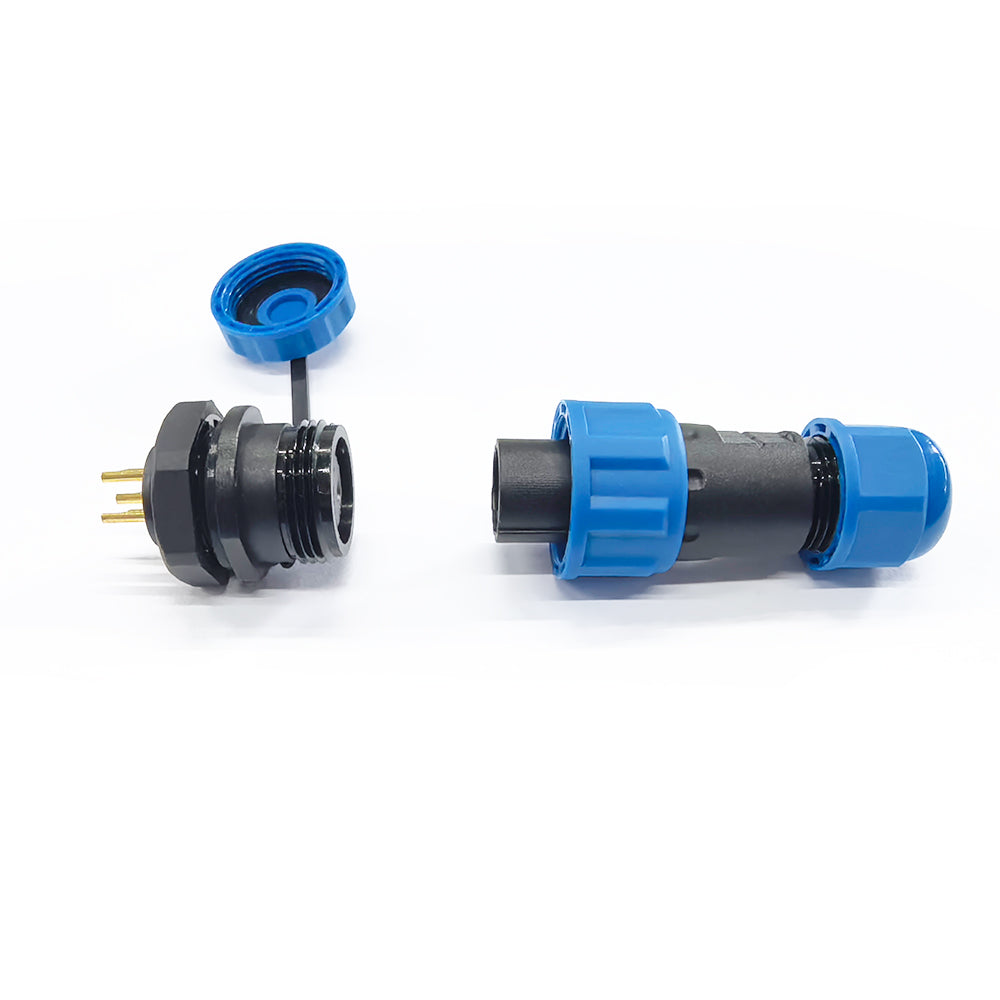

6. Mount the rear-nut socket — Insert the socket through your enclosure panel hole from the outside. Thread the rear nut from the inside and tighten to secure the socket flush against the panel. Apply PTFE thread tape or Waterproof silicone for additional sealing if needed.

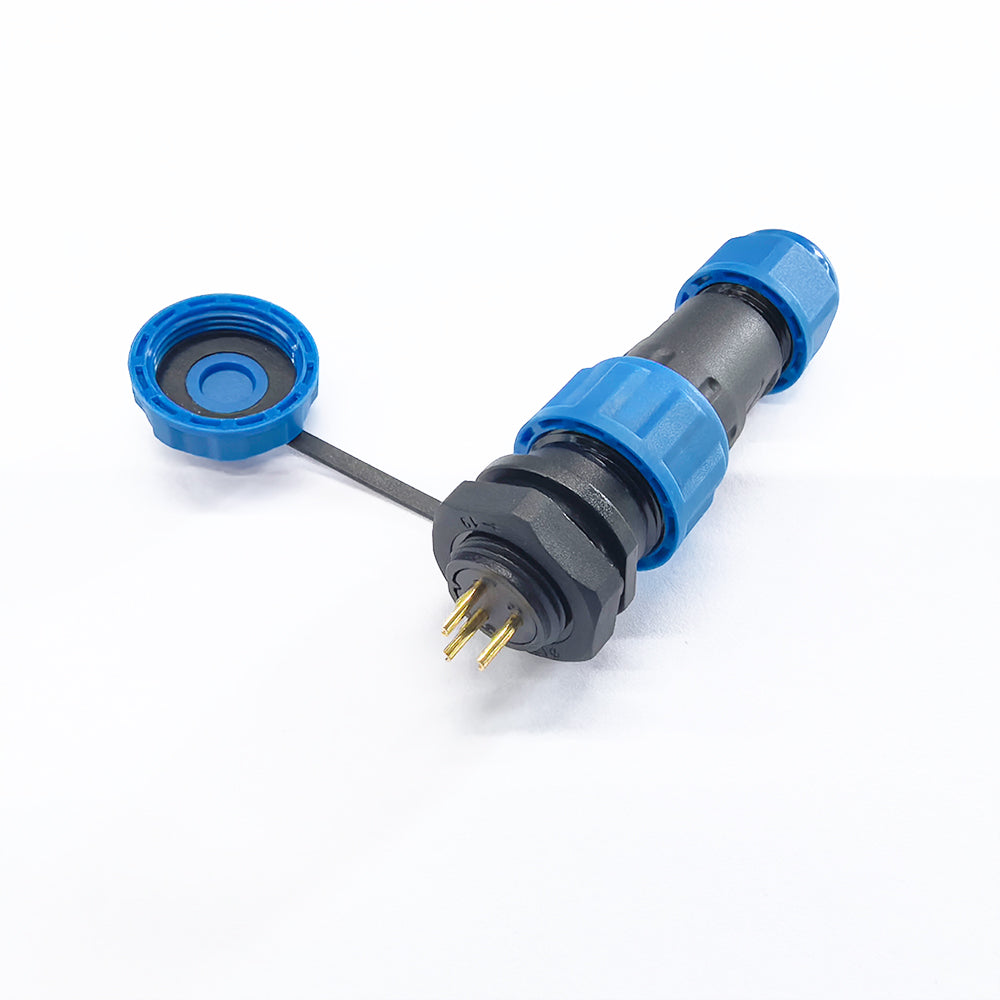

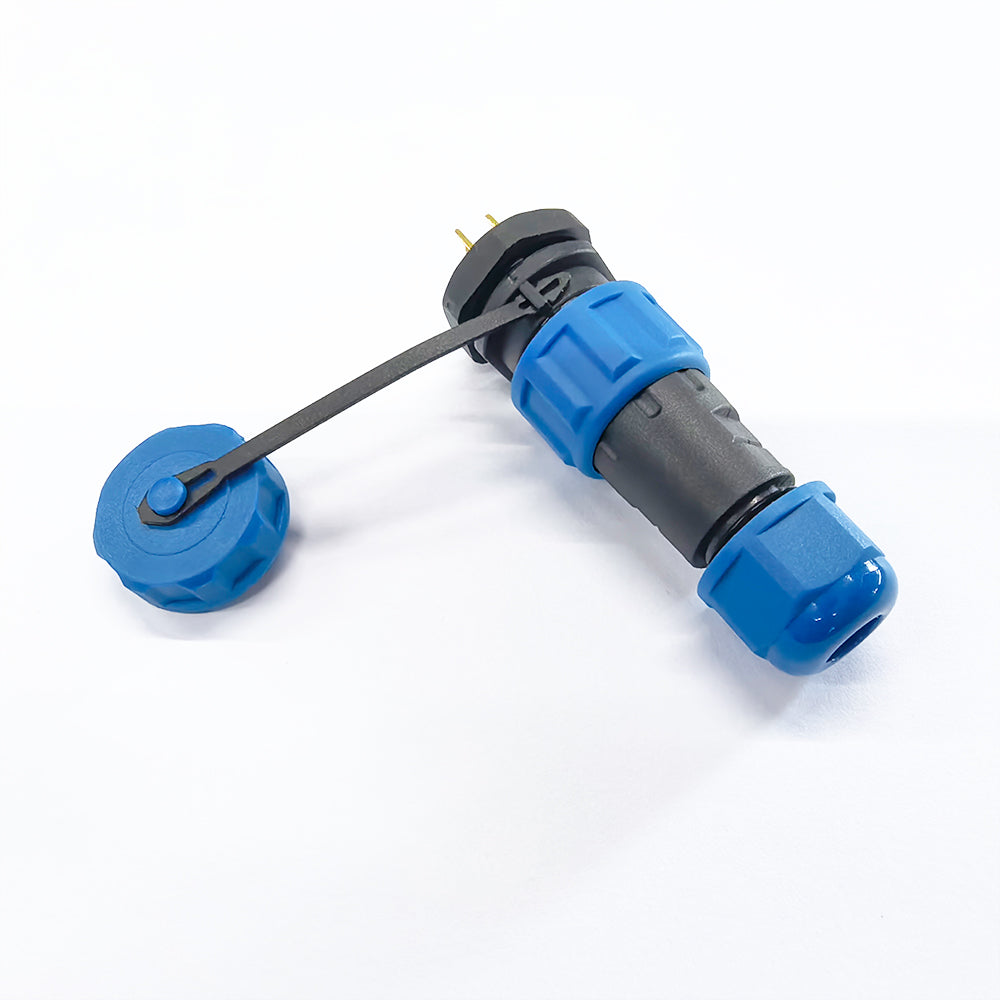

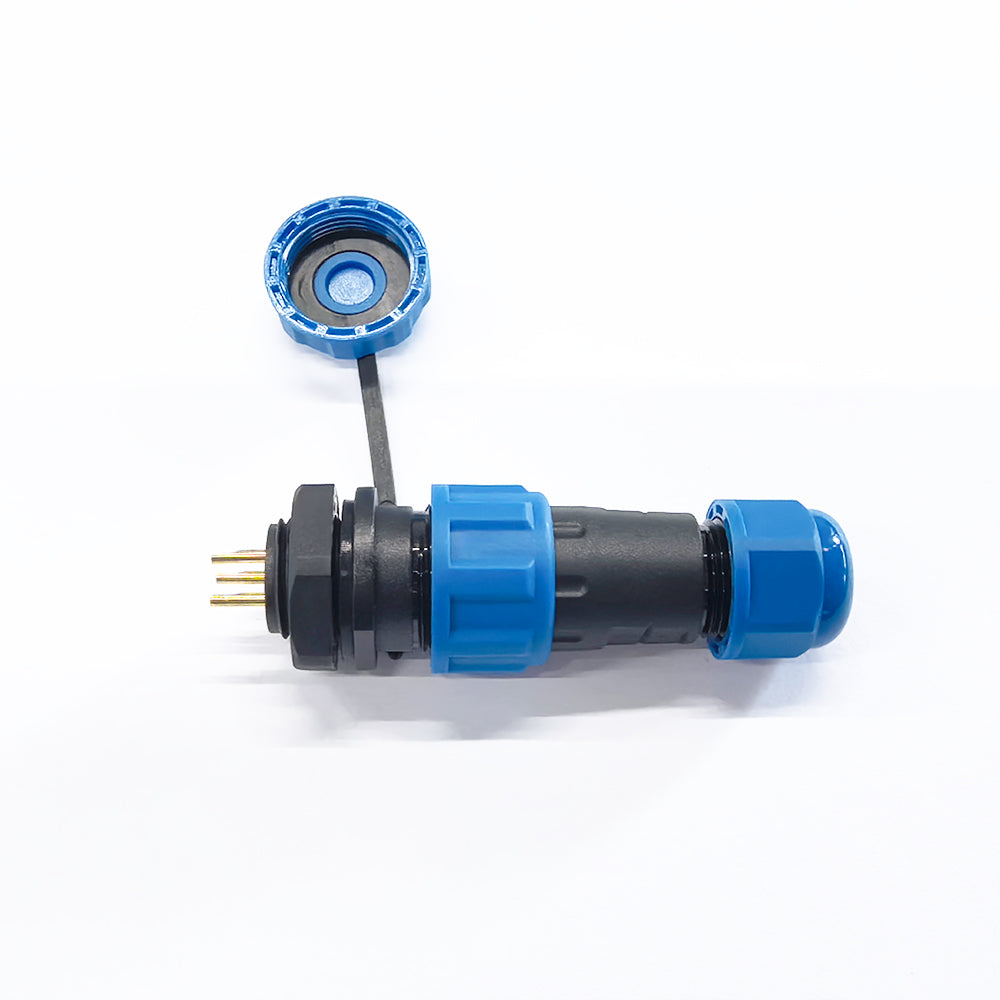

7. Tighten the plug locking nut & test — Align plug and socket (anti-misfit keying ensures correct orientation), push together, and rotate the locking nut clockwise until firm. For eFoil/ROV use, submerge the mated pair for 30 minutes to verify the seal before full deployment. To disconnect: rotate nut counter-clockwise and pull apart.

❓ FAQ

Q1: What is the difference between 3-core and 4-core, and which should I choose?
Choose 5A-3Core for 3-wire signal connections — common uses include PPM/PWM remote receiver (GND + VCC + signal), hall effect sensors, or any 3-wire sensor/signal cable. Choose 5A-4Core for 4-wire connections — common uses include CAN bus (GND + VCC + CAN-H + CAN-L), motor temperature + hall sensor combined, or 4-wire throttle assemblies. Both variants are rated 5A per pin and share the same IP68 housing and cable OD range.

Q2: How does this connector differ from the FD05 10A/24A variants?
The FD05-5A (this product) is optimized for multi-core signal wiring — 3 or 4 conductors at up to 5A each. The FD05 10A-2Core and 24A-1Core variants are designed for fewer conductors at higher current (10A or 24A). Use the 5A multi-core for signal and sensor wiring; use the 10A/24A variants for power connections. All share the same IP68 rating, PA66 body, and gold-plated contacts.

Q3: What cable sizes are compatible?
The FD05-5A accepts cables with an outer diameter of 4–6.5mm. For multi-core cables, the total OD of the jacketed cable must fall within this range. Common 3-core and 4-core signal cables (12AWG–10AWG conductors) typically have a jacketed OD of 4–6mm — verify your cable OD before ordering. Cables outside the 4–6.5mm range will not seal correctly and the IP68 rating will not be achieved.

Q4: Is IP68 maintained after repeated mating cycles?
Yes, within the rated 500 mating cycles and provided the rubber seal is undamaged. After each disconnection, inspect the seal gland for cuts, compression set, or debris before re-mating. Rinse with fresh water after salt water use. If the seal shows wear or the locking nut no longer holds firmly, replace the connector set.

Q5: Can I use this connector for salt water / marine applications?
Yes. The PA66 body and gold-plated T2J copper contacts are corrosion-resistant and rated for salt water environments. Always rinse with fresh water after salt water exposure and inspect contacts periodically. The gold plating significantly extends contact life compared to bare copper or tin-plated alternatives. For critical marine installations, perform a 30-minute submersion test after assembly to verify seal integrity before deployment.
